Features

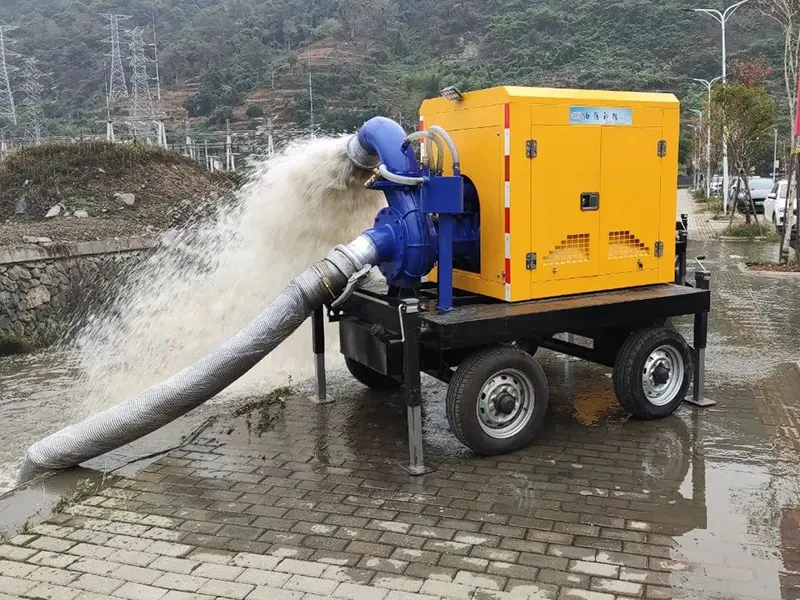

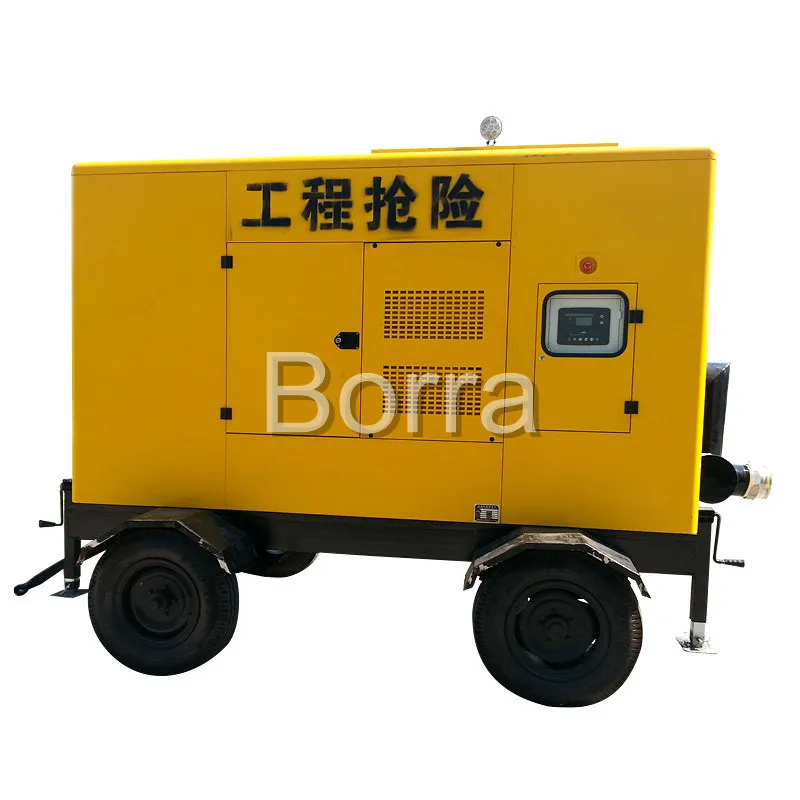

Very easy to be moved to remote place for work with a trailer
Smart structure
High efficiency
Designed for easy maintainence
Characteristics
1m noise measured 65dB(A)-85dB(A);
Mute diesel engine pump has a compact structure, small;
The vibration absorber, to reduce vibration and noise;
Noise absorber material-made cover, to reduce noise;
Noise absorber compound muffler, to reduce noise;
High-efficient noise-off inlet channel;
Big-capacity fuel tank;
Cap plate, easy to maintain.
Conditions
| 1. Altitude: | ≤2500m |
| 2. Ambient temperature: | -25~55ºC |
| 3. Relative humidity: | 9~95% |
| 4. Earthquake: | 7 degree |
| 5. Flow range: | 50-700(L/S) |
| 6. Head range: | 32-600m |
| 7. Diesel engine power: | 18-1100KW |
| 8. Media part materials: | cast iron, graphite cast iron, stainless steel, cast copper. |
Application
1. Municipal Project, Sewage Project, Instruction Project
2. Transportation of the sewage of uptown
3. Sewage transportation in Hospital, hotels,s and so on
4. Classification of municipal sewage treatment factory and concentrate treatment systems engineering.
5. Transportation of the factory and contaminated water
Technical Parameters
| Model | r/min | kw | m3/h | m | % |
| ZBCY25-8-15 | 2900 | 1.5 | 8 | 15 | 55 |
| ZBCY32-10-20 | 2900 | 2.2 | 10 | 20 | 55 |
| ZBCY40-15-30 | 2900 | 3 | 15 | 30 | 60 |
| ZBCY50-10-20 | 2900 | 2.2 | 10 | 20 | 58 |
| ZBCY50-15-30 | 2900 | 3 | 15 | 30 | 60 |
| ZBCY65-30-18 | 1450 | 4 | 30 | 18 | 60 |
| ZBCY65-20-30 | 2900 | 5.5 | 20 | 30 | 60 |
| ZBCY65-25-40 | 2900 | 7.5 | 25 | 40 | 55 |
| ZBCY80-40-16 | 1450 | 4 | 40 | 16 | 62 |
| ZBCY80-80-35 | 2900 | 15 | 80 | 35 | 62 |
| ZBCY80-50-60 | 2900 | 22 | 50 | 60 | 55 |
| ZBCY100-100-15 | 1450 | 7.5 | 100 | 15 | 65 |
| ZBCY100-80-20 | 1450 | 7.5 | 80 | 20 | 65 |
| ZBCY100-100-30 | 2900 | 22 | 100 | 30 | 60 |
| ZBCY100-80-60 | 2900 | 37 | 80 | 60 | 58 |
| ZBCY100-80-80 | 2900 | 45 | 80 | 60 | 55 |
| ZBCY125-180-14 | 1450 | 15 | 180 | 14 | 60 |
| ZBCY125-200-15 | 1450 | 15 | 200 | 15 | 63 |
| ZBCY150-400-20 | 2900 | 55 | 400 | 20 | 60 |
| ZBCY200-300-18 | 1450 | 37 | 300 | 18 | 65 |
| ZBCY250-400-22 | 1450 | 55 | 400 | 22 | 68 |
| ZBCY300-800-14 | 1450 | 55 | 800 | 14 | 61 |
